Deksripsi

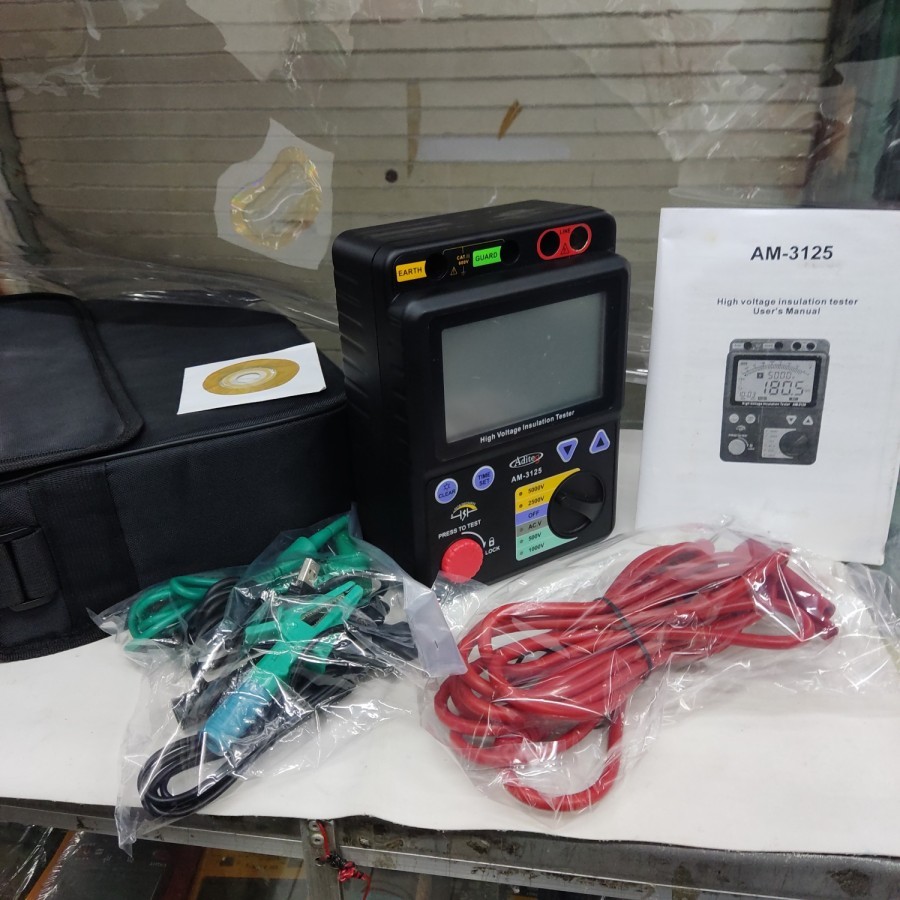

Jual Digital Insulation Tester 5000V Aditeg AM-3125
Display LDC Max 999 counts . bar graph 36 point
Over range indicator: OL mark appears on Insulation resistance range, Lo mark appears on Voltage ranges
sample rate : 0.5 ~ 10 times/ sec
Operation Temp: 0 ~ 40 degree C

Aditeg AM-3125
Rated voltage : 500V, 1000V, 2500V, 5000V
Test range : 0.00 1000 G Ohm
Rated curent : 0.5 MOhm Loading ~ 5.0 M Ohm
Short circuit current : approx 1.3 mA
accuracy : 0 ~ 99.9 G Ohm +- 5% rdg

Voltage Tester range:
DC Volt 30 ~ 600 Volt
AC Volt 30 ~ 600 Volt
Resolution 1 Volt
Accuracy +- 2% rdg

Dimension: 153 x 213 x 95 mm

power battery : 8 pcs batere 1,5 Volt ( R14S/ UM-2U)

Made in China
